Configuration

Torches uses a config.json file to store config values. Invalid JSON syntax in this file will cause errors.

Value List

Name	Default Value
allowAnyPed	false
torchesDistance	30
torchesBrightness	1.5
torchesRoundness	0.5
torchesRadius	20
torchesFallOff	100
command	torch
defaultKeybind	None
disableHeadMovement	true
inventorySupport	false
defaults	See Below
peds	See Below
mppeds	See Below

Values Explained

Allow Any Ped

allowAnyPed

If this value is false, only preconfigured Peds and MP Peds will be able to use Torches.
If this value is true, any Ped or MP Ped can use Torches. Where no preset exists, defaults will be used.

Torch Distance

torchDistance

This value controls the distance a Torch will be drawn with.

Torch Brightness

torchBrightness

This value controls the brightness a Torch will be drawn with.

Torch Roundness

torchRoundness

This value controls the roundness a Torch will be drawn with.

Torch Radius

torchRadius

This value controls the radius a Torch will be drawn with.

Torch Falloff

torchFallOff

This value controls the falloff a Torch will be drawn with.

Command

Command

The name of the command.

Default Keybind

defaultKeybind

The keyboard mapping name for the key to use for the keybind.
For a full list of options, see here.

By default, no default is provided, meaning there is no keybind.
Players can add one via their GTA V/FiveM Keybind Settings

Disable Head Movement

disableHeadMovement

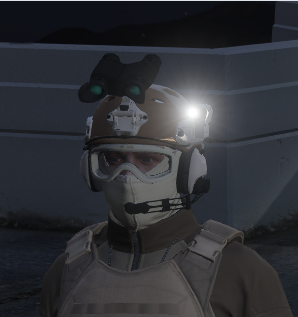

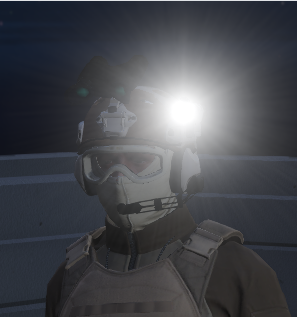

When enabled, prevents head movement when moving third-person camera, allowing light source to stay "attached" to helmets.

DisableHeadMovement Disabled	DisableHeadMovement Enabled

Inventory Support

inventorySupport

When this value is true, inventory support for resources such as OxInventory and QBInventory will be enabled.

note

You must also uncomment/edit the editable/server/inventory.lua file in addition to setting this value to true in order for inventory resources to work. Code inside editable/server/inventory.lua will not run unless inventorySupport is true.

Inside the editable/server/inventory.lua file, server owners/developers can either uncomment the code for OxInventory or QBInventory, or add their own inventory code as required. Reach out in Discord if you need help adding other resources.

tip

The "items.lua" entry for both Ox and QB are located at the top of editables/server/inventory.lua, and 100x100 png images are located in the download root directory.

Defaults

defaults

The values listed in the defaults are values used when no other matching preset can be found.
There are two default entries, one for head and one for chest.
Changing these values will change the default torch positions on a ped.

Peds

peds

This config option is where you list presets for non-MP Peds, such as base game peds or addon peds.
Unlike MP Peds, this config option is not split into Male and Female.

Entries for this config option can be created in-game using the Tool. See here for more info.

Below is an example of an entry:

{
  "model": "s_m_y_fireman_01",
  "mountType": "Chest",
  "source": {
    "X": 0.16,
    "Y": 0.212,
    "Z": 0.148
  },
  "corona": {
    "X": 0.16,
    "Y": 0.212,
    "Z": 0.148
  }
}

• model is the spawn name of the model
• mountType is either head or chest
• source is a Vector3 offset from the ped for where the torch's light source should appear from
• corona is a Vector3 offset from the ped for where the torch's corona should appear from

MP Peds

mppeds

This config option is where you list presets for MP Peds.
This config option is split into Male and Female.

Entries for this config option can be created in-game using the Tool. See here for more info.

Below is an example of an entry:

{
	"collectionName": "mp_m_smuggler_01",
	"localIndex": 6,
	"isProp": true,
	"variationId": 0,
	"mountType": "Head",
	"source": {
		"X": 0.15,
		"Y": 0,
		"Z": 0.15
	},
	"corona": {
		"X": 0.148,
		"Y": 0.0735,
		"Z": 0.115
	}
}

• collectionName is the cloth collection the preset item is set to
• localIndex is the local id of the selected cloth item within the selected collection
• isProp is true if using a prop, or false if using a component
• variationId is the type of prop or component of the preset item
• mountType is either head or chest
• source is a Vector3 offset from the ped for where the torch's light source should appear from
• corona is a Vector3 offset from the ped for where the torch's corona should appear from

Default Config File

config.json

{
	"allowAnyPed": false,

	"torchDistance": "30",
	"torchBrightness": "1.5",
	"torchRoundness": "0.5",
	"torchRadius": "20",
	"torchFallOff": "100",

	"command": "torch",
	"defaultKeybind": "",

	"disableHeadMovement": true,
	"inventorySupport": false,

	"defaults": {
		"head": {
			"source": {
				"X": 0.15,
				"Y": 0,
				"Z": -0.15
			},
			"corona": {
				"X": 0.15,
				"Y": 0,
				"Z": -0.15
			}
		},

		"chest": {
			"source": {
				"X": 0.16,
				"Y": 0.225,
				"Z": 0.15
			},
			"corona": {
				"X": 0.16,
				"Y": 0.2,
				"Z": 0.15
			}
		}
	},

	"peds": [
		{
			"model": "s_m_y_fireman_01",
			"mountType": "Chest",
			"source": {
				"X": 0.16,
				"Y": 0.212,
				"Z": 0.148
			},
			"corona": {
				"X": 0.16,
				"Y": 0.212,
				"Z": 0.148
			}
		}
	],

	"mppeds": {
		"male": [
			{
				"collectionName": "mp_m_smuggler_01",
				"localIndex": 6,
				"isProp": true,
				"variationId": 0,
				"mountType": "Head",
				"source": {
					"X": 0.15,
					"Y": 0,
					"Z": 0.15
				},
				"corona": {
					"X": 0.148,
					"Y": 0.0735,
					"Z": 0.115
				}
			},
			{
				"collectionName": "mp_m_heist3",
				"localIndex": 0,
				"isProp": false,
				"variationId": 8,
				"mountType": "Chest",
				"source": {
					"X": 0.157,
					"Y": 0.22,
					"Z": 0.15
				},
				"corona": {
					"X": 0.157,
					"Y": 0.215,
					"Z": 0.15
				}
			}
		],

		"female": [
			{
				"CollectionName": "mp_f_smuggler_01",
				"LocalIndex": 6,
				"IsProp": true,
				"VariationId": 0,
				"MountType": "Head",
				"Source": {
					"X": 0.1475,
					"Y": 0.0575,
					"Z": 0.1199
				},
				"Corona": {
					"X": 0.1475,
					"Y": 0.0525,
					"Z": 0.1199
				}
			},

			{
				"collectionName": "mp_f_heist3",
				"localIndex": 0,
				"isProp": false,
				"variationId": 8,
				"mountType": "Chest",
				"source": {
					"X": 0.155,
					"Y": 0.222,
					"Z": 0.15
				},
				"corona": {
					"X": 0.155,
					"Y": 0.217,
					"Z": 0.15
				}
			}
		]
	}
}
